Series 2/672

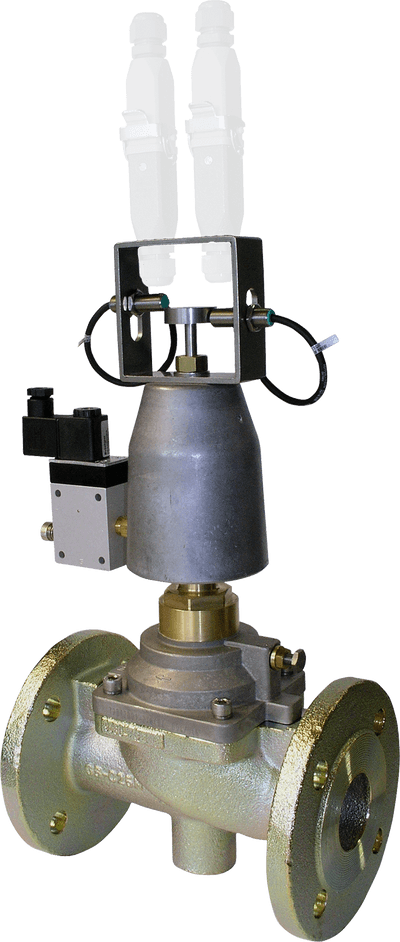

2/2-way valve pneumatic actuated, for water in power plant design with damping cone and magnetic field sensors for remote monitoring.
Technical informations
Connections
DN50, DN65
Pressure
0 bar up to 40 bar
Temperature
-10 °C up to 80 °C
Type of Control
pneum. force pilot
Housing materials
AISI 316 Ti - 1.4571(81) | EN-GP240GH cast steel
Sealing
PTFE | PTFE/Peek
Media
Water, H2O
All Products
2/672-06/0515/7008-IJ-DK
DN50
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches
2/672-06/0515/7008-IJ-DK-HAN7D
DN50
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches Harting plug connection
2/672-06/0515/7008-IJ-DK-SA-AZ
DN50
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches special painting1
2/672-06/0804/7008-IJ-DK
DN50
AISI 316 Ti - 1.4571(81)
PTFE
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches
2/672-06/0804/7008-IJ-DK-HAN7D
DN50
AISI 316 Ti - 1.4571(81)
PTFE
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches Harting plug connection
2/672-07/0515/7008-IJ-DK
DN65
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches
2/672-07/0515/7008-IJ-DK-HAN7D
DN65
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches Harting plug connection
2/672-07/0515/7008-IJ-DK-SA-AZ
DN65
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches special painting1
2/672-07/0515/7008-IJ-DK-SA-GR
DN65
EN-GP240GH cast steel
PTFE/Peek
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches special painting2
2/672-07/0804/7008-IJ-DK
DN65
AISI 316 Ti - 1.4571(81)
PTFE
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches
2/672-07/0804/7008-IJ-DK-HAN7D
DN65
AISI 316 Ti - 1.4571(81)
PTFE
0 - 40 bar
NC — closed by spring power with the flow direction
damping kone inductive limit switches Harting plug connection
