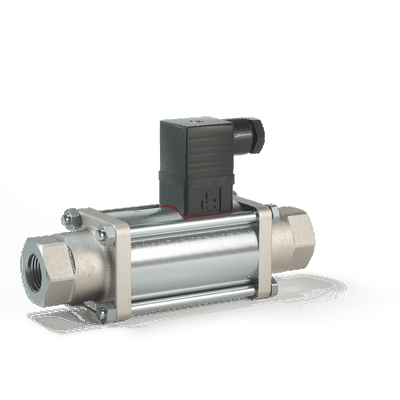

Series 2/918-08-R270
2/2-way direct operated axial slide solenoid valve for high viscosity, jelly-like and dirty fluids.
The valve is back pressure resistant up to 16bar. Installation in horizontal or vertically pipe.
Please pay attention to the high consumption power and heavy weight of these type!
Technical informations
Connections
G1/4, G3/8, G1/2, G3/4, G1, G5/4, G6/4, G2
Pressure
0 bar up to 40 bar
Temperature
-10 °C up to 100 °C
Type of Control
electr. direct
Housing materials
AISI 316 Ti - 1.4571(81)
Sealing
EPDM | FKM | PTFE
Media
high viscous Fluids up to 1000 mm²/s, dirty Fluids, Nitrous Oxide N2O, HCL Hydrogen chloride gas, Urea, Hydrogen Peroxide 0,5% H2O2, +20°C, Sodium hydroxide (sodium hydroxide), NaOH, 30%, +20°C, Air, sodium hypochlorite NaOCl (Chlorine bleach) max. 12%, +20°C, Sulfuric acid H2SO4 max. 10%, 20°C, Water demineralised, Osmose, Nitric acid aqueous 40%, HNO3
All Products
2/918-49/0802/R270-1E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Sensor inductive, 1-fold Back pressure safe
2/918-49/0802/R270-2E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Back pressure safe
2/918-49/0802/R270-GO-1E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Sensor inductive, 1-fold Back pressure safe
2/918-49/0802/R270-GO-2E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Free of oil and grease Back pressure safe
2/918-49/0802/R270-GX
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Free of oil and grease Back pressure safe
2/918-49/0802/R270-IS
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed IP68 incl. 3m cable Back pressure safe
2/918-49/0802/R270-NG
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Back pressure safe
2/918-49/0802/R270-NJ-1E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Valve body with NPT thread Sensor inductive, 1-fold Back pressure safe
2/918-49/0802/R270-NO
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Back pressure safe
2/918-49/0802/R270-NO-1E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Sensor inductive, 1-fold Back pressure safe
2/918-49/0802/R270-NO-2E
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Magnetic sensor inductive 2-fold
2/918-49/0802/R270-NO-WA
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Back pressure safe Water seal package
2/918-49/0802/R270-OF
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Back pressure safe
2/918-49/0802/R270-TK
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Back pressure safe low temperature design
2/918-49/0802/R270-VD
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed vacuum + overpressure Back pressure safe
2/918-49/0802/R270-WA
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Water seal package
2/918-49/0802/R270-XX
G1/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Back pressure safe
2/918-49/0806/R270-1E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Sensor inductive, 1-fold Back pressure safe
2/918-49/0806/R270-2E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Back pressure safe
2/918-49/0806/R270-GO-1E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Sensor inductive, 1-fold Back pressure safe
2/918-49/0806/R270-GO-2E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Free of oil and grease Back pressure safe
2/918-49/0806/R270-GX
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Free of oil and grease Back pressure safe
2/918-49/0806/R270-NG
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Back pressure safe
2/918-49/0806/R270-NJ-1E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Valve body with NPT thread Sensor inductive, 1-fold Back pressure safe
2/918-49/0806/R270-NO
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Back pressure safe
2/918-49/0806/R270-NO-1E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Sensor inductive, 1-fold Back pressure safe
2/918-49/0806/R270-NO-2E
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Magnetic sensor inductive 2-fold
2/918-49/0806/R270-OF
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Back pressure safe
2/918-49/0806/R270-TK
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Back pressure safe low temperature design
2/918-49/0806/R270-VD
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed vacuum + overpressure Back pressure safe
2/918-49/0806/R270-WA
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Water seal package
2/918-49/0806/R270-XX
G1/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Back pressure safe
2/918-59/0802/R270-1E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Sensor inductive, 1-fold Back pressure safe
2/918-59/0802/R270-2E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Back pressure safe
2/918-59/0802/R270-GO-1E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Sensor inductive, 1-fold Back pressure safe
2/918-59/0802/R270-GO-2E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Free of oil and grease Back pressure safe
2/918-59/0802/R270-GX
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Free of oil and grease Back pressure safe
2/918-59/0802/R270-IS
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed IP68 incl. 3m cable Back pressure safe
2/918-59/0802/R270-NG
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Back pressure safe
2/918-59/0802/R270-NJ-1E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Valve body with NPT thread Sensor inductive, 1-fold Back pressure safe
2/918-59/0802/R270-NO
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Back pressure safe
2/918-59/0802/R270-NO-1E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Sensor inductive, 1-fold Back pressure safe
2/918-59/0802/R270-NO-2E
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Magnetic sensor inductive 2-fold
2/918-59/0802/R270-NO-WA
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Back pressure safe Water seal package
2/918-59/0802/R270-OF
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Back pressure safe
2/918-59/0802/R270-TK
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Back pressure safe low temperature design
2/918-59/0802/R270-VD
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed vacuum + overpressure Back pressure safe
2/918-59/0802/R270-WA
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Water seal package
2/918-59/0802/R270-XX
G3/8
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Back pressure safe
2/918-59/0806/R270-1E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Sensor inductive, 1-fold Back pressure safe
2/918-59/0806/R270-2E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Back pressure safe
2/918-59/0806/R270-GO-1E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Sensor inductive, 1-fold Back pressure safe
2/918-59/0806/R270-GO-2E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Free of oil and grease Back pressure safe
2/918-59/0806/R270-GX
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Free of oil and grease Back pressure safe
2/918-59/0806/R270-IS
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed IP68 incl. 3m cable Back pressure safe
2/918-59/0806/R270-NG
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Back pressure safe
2/918-59/0806/R270-NJ-1E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Valve body with NPT thread Sensor inductive, 1-fold Back pressure safe
2/918-59/0806/R270-NO
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Back pressure safe
2/918-59/0806/R270-NO-1E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Sensor inductive, 1-fold Back pressure safe
2/918-59/0806/R270-NO-2E
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Magnetic sensor inductive 2-fold
2/918-59/0806/R270-NO-WA
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Back pressure safe Water seal package
2/918-59/0806/R270-OF
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Back pressure safe
2/918-59/0806/R270-TK
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Back pressure safe low temperature design
2/918-59/0806/R270-VD
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed vacuum + overpressure Back pressure safe
2/918-59/0806/R270-WA
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Water seal package
2/918-59/0806/R270-XX
G3/8
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Back pressure safe
2/918-69/0802/R270-1E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Sensor inductive, 1-fold Back pressure safe
2/918-69/0802/R270-2E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Back pressure safe
2/918-69/0802/R270-GO-1E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Sensor inductive, 1-fold Back pressure safe
2/918-69/0802/R270-GO-2E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Free of oil and grease Back pressure safe
2/918-69/0802/R270-GX
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Free of oil and grease Back pressure safe
2/918-69/0802/R270-IS
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed IP68 incl. 3m cable Back pressure safe
2/918-69/0802/R270-NG
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Back pressure safe
2/918-69/0802/R270-NJ-1E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Valve body with NPT thread Sensor inductive, 1-fold Back pressure safe
2/918-69/0802/R270-NO
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Back pressure safe
2/918-69/0802/R270-NO-1E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Sensor inductive, 1-fold Back pressure safe
2/918-69/0802/R270-NO-2E
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Magnetic sensor inductive 2-fold
2/918-69/0802/R270-NO-WA
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally open Back pressure safe Water seal package
2/918-69/0802/R270-OF
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Back pressure safe
2/918-69/0802/R270-TK
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Back pressure safe low temperature design
2/918-69/0802/R270-VD
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed vacuum + overpressure Back pressure safe
2/918-69/0802/R270-WA
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Water seal package
2/918-69/0802/R270-XX
G1/2
AISI 316 Ti - 1.4571(81)
FKM
0 - 40 bar
DC
IP65
normally closed Back pressure safe
2/918-69/0806/R270-1E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Sensor inductive, 1-fold Back pressure safe
2/918-69/0806/R270-2E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Back pressure safe
2/918-69/0806/R270-GO-1E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Sensor inductive, 1-fold Back pressure safe
2/918-69/0806/R270-GO-2E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Magnetic sensor inductive 2-fold Free of oil and grease Back pressure safe
2/918-69/0806/R270-GX
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Free of oil and grease Back pressure safe
2/918-69/0806/R270-IS
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed IP68 incl. 3m cable Back pressure safe
2/918-69/0806/R270-NG
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Valve body with NPT thread Back pressure safe
2/918-69/0806/R270-NJ-1E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Valve body with NPT thread Sensor inductive, 1-fold Back pressure safe
2/918-69/0806/R270-NO
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Back pressure safe
2/918-69/0806/R270-NO-1E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Sensor inductive, 1-fold Back pressure safe
2/918-69/0806/R270-NO-2E
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Magnetic sensor inductive 2-fold
2/918-69/0806/R270-NO-WA
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally open Back pressure safe Water seal package
2/918-69/0806/R270-OF
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Free of oil and grease Back pressure safe
2/918-69/0806/R270-TK
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Back pressure safe low temperature design
2/918-69/0806/R270-VD
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed vacuum + overpressure Back pressure safe
2/918-69/0806/R270-WA
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Water seal package
2/918-69/0806/R270-XX
G1/2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 40 bar
DC
IP65
normally closed Back pressure safe
Not the right product?
Use our filter and search function at the top of the page.
