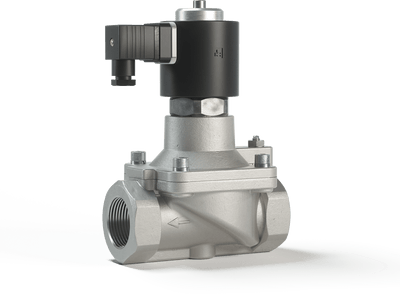

Series B43-08
Series 43 solenoid valves, suitable for gases and liquids without solids, seal the valve seat with the help of a rubber diaphragm. Force-controlled solenoid valves are ideal for applications where direct-acting valves are required. These valves work from as little as 0 bar pressure difference and combine the advantages of servo- and direct-controlled valves. An unusually wide range of options make the 43 series with threaded connections the specialist `par excellence`.
Technical informations
Connections
G5/4, G6/4, G2
Pressure
0 bar up to 16 bar
Temperature
-30 °C up to 80 °C
Type of Control
electrically force-controlled
Housing materials
AISI 316 Ti - 1.4571(81)
Sealing
NBR | EPDM | FKM
Optional
NO, manual reset, limit switches, Ex-proof, free of oil and grease
Media
Ammoniac NH3, Methanol Alcohole CH3OH, Ethanol, Hydrogen H2, Adblue, Water, H2O, Air, Propane/Butane gaseous C3H8, Nitrogen Gas N2, Argon Ar, CO2 carbon dioxide gas, Helium Gas He, Sodium Phosphate NA3PO4, Gasoline, Dieseloil, Fuels, JP-8 jet fuel aviation, kerosine, Triglycole, Triethylenglycole C6H14O4, Hydrogen Sulfide, gas, dry, H2S, Additives for Fuels, Biodiesel, Rapsmethylester (RME),
potassium hydroxide KOH, 50%, aqueous, sewage gas, proportionally H2S, NH3, Urea, sodium silicate (waterglass), Isobutane C4H10, Acetylene C2H2, Methane CH4, silan gas, Propionic acid C3H6O2, Sodium nitrite - aqueous NaNO2, Water demineralised, Osmose, Water H2O with Glycole, Cool Emulsion, Cooling Water
All Products
B4326/0801/1322-MF
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4326/0801/3322-MF
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4326/0801/4242-MF
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4326/0801/4242-MF-5P
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4326/0801/4242-MF-B0
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0801/5242-MF
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4326/0801/5242-MF-5P
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4326/0801/5242-MF-B0
G5/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0802/1322-MF
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4326/0802/3322-MF
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4326/0802/4242-MF
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4326/0802/4242-MF-5P
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4326/0802/4242-MF-B0
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0802/4242-MF-OF-B0
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Free of oil and grease Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0802/5242-MF
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4326/0802/5242-MF-5P
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4326/0802/5242-MF-B0
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0802/5242-MF-OF-B0
G5/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Free of oil and grease Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0806/1322-MF
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4326/0806/3322-MF
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4326/0806/4242-MF
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4326/0806/4242-MF-5P
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4326/0806/4242-MF-B0
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4326/0806/5242-MF
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4326/0806/5242-MF-5P
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4326/0806/5242-MF-B0
G5/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0801/1322-MF
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4327/0801/3322-MF
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4327/0801/4242-MF
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4327/0801/4242-MF-5P
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4327/0801/4242-MF-B0
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0801/5242-MF
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4327/0801/5242-MF-5P
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4327/0801/5242-MF-B0
G6/4
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0802/1322-MF
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4327/0802/3322-MF
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4327/0802/4242-MF
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4327/0802/4242-MF-5P
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4327/0802/4242-MF-B0
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0802/4242-MF-OF-B0
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Free of oil and grease Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0802/5242-MF
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4327/0802/5242-MF-5P
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4327/0802/5242-MF-B0
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0802/5242-MF-OF-B0
G6/4
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Free of oil and grease Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0806/1322-MF
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4327/0806/3322-MF
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4327/0806/4242-MF
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4327/0806/4242-MF-5P
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4327/0806/4242-MF-B0
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4327/0806/5242-MF
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4327/0806/5242-MF-5P
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4327/0806/5242-MF-B0
G6/4
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0801/1322-MF
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4328/0801/1322-NJ
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
DC
IP65
normally open Valve body with NPT thread
B4328/0801/1322-NO
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
DC
IP65
normally open
B4328/0801/3322-MF
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4328/0801/3322-NJ
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
AC
IP65
normally open Valve body with NPT thread
B4328/0801/3322-NO
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 2 bar
AC
IP65
normally open
B4328/0801/4242-MF
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4328/0801/4242-MF-5P
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4328/0801/4242-MF-B0
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0801/5242-MF
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4328/0801/5242-MF-5P
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4328/0801/5242-MF-B0
G2
AISI 316 Ti - 1.4571(81)
NBR
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0802/1322-MF
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4328/0802/1322-NF
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally open Free of oil and grease
B4328/0802/1322-NJ
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally open Valve body with NPT thread
B4328/0802/1322-NO
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally open
B4328/0802/1322-OL
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
DC
IP65
normally open Free of oil and grease Manual operation HN
B4328/0802/3322-MF
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4328/0802/3322-NF
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally open Free of oil and grease
B4328/0802/3322-NJ
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally open Valve body with NPT thread
B4328/0802/3322-NO
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally open
B4328/0802/3322-OL
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 2 bar
AC
IP65
normally open Free of oil and grease Manual operation HN
B4328/0802/4242-MF
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4328/0802/4242-MF-5P
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4328/0802/4242-MF-B0
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0802/4242-MF-OF-B0
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
DC
IP65
normally closed Free of oil and grease Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0802/5242-MF
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4328/0802/5242-MF-5P
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4328/0802/5242-MF-B0
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0802/5242-MF-OF-B0
G2
AISI 316 Ti - 1.4571(81)
FKM
0 - 12 bar
AC
IP65
normally closed Free of oil and grease Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0806/1322-MF
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
DC
IP65
normally closed Einbaulage vertikal
B4328/0806/1322-NJ
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
DC
IP65
normally open Valve body with NPT thread
B4328/0806/1322-NO
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
DC
IP65
normally open
B4328/0806/3322-MF
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
AC
IP65
normally closed Einbaulage vertikal
B4328/0806/3322-NJ
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
AC
IP65
normally open Valve body with NPT thread
B4328/0806/3322-NO
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 2 bar
AC
IP65
normally open
B4328/0806/4242-MF
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Einbaulage vertikal
B4328/0806/4242-MF-5P
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4328/0806/4242-MF-B0
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
DC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0806/4248-EB
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 6 bar
DC
Ex protection
normally closed Reed contact 2-wire RC12
B4328/0806/4248-NG
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 6 bar
DC
Ex protection
normally closed Valve body with NPT thread
B4328/0806/4248-XX
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 6 bar
DC
Ex protection
normally closed
B4328/0806/5242-MF
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Einbaulage vertikal
B4328/0806/5242-MF-5P
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Reed contact 2-wire RC27-S-M12-4P Einbaulage vertikal
B4328/0806/5242-MF-B0
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 12 bar
AC
IP65
normally closed Magnetic switch 2-fold OPEN and CLOSE inductive 3-wire N/O contact PNP Einbaulage vertikal
B4328/0806/5248-EB
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 6 bar
AC
Ex protection
normally closed Reed contact 2-wire RC12
B4328/0806/5248-NG
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 6 bar
AC
Ex protection
normally closed Valve body with NPT thread
B4328/0806/5248-XX
G2
AISI 316 Ti - 1.4571(81)
EPDM
0 - 6 bar
AC
Ex protection
normally closed
Not the right product?
Use our filter and search function at the top of the page.
