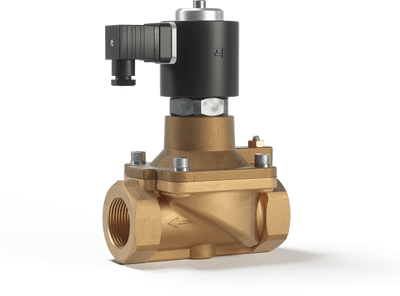

Series B43-10
Series 43 solenoid valves, suitable for gases and liquids without solids, seal the valve seat with the help of a rubber diaphragm. Force-controlled solenoid valves are ideal for applications where direct-acting valves are required. These valves work from as little as 0 bar pressure difference and combine the advantages of servo- and direct-controlled valves. An unusually wide range of options make the 43 series with threaded connections the specialist `par excellence`.
Technical informations
Connections
G5/4, G6/4, G2
Pressure
0 bar up to 16 bar
Temperature
-30 °C up to 80 °C
Type of Control
electrically force-controlled
Housing materials
CW617N brass
Sealing
NBR | EPDM | FKM
Optional
NO, manual reset, limit switches, Ex-proof, free of oil and grease
Media
Water, H2O, Nitrogen Gas N2, Oxygen O2, Air, Vacuum, Water H2O with Glycole, Cool Emulsion, Cooling Water, Propane/Butane gaseous C3H8, LPG liquified petrol gas propane, butane, natural Gas CH4, Fuel Oil, Gasoline, Dieseloil, Fuels, CO2 carbon dioxide gas, Ethanol, Forming Gas, Methane CH4, Hydrogen H2, Argon Ar, Vacuum + Pressure, Brake Fluid, Hydraulic Oil, Motor Oil, Mineral Oil, Nitrous Oxide N2O, Rape Oil, propylene glycol C3H8O2, Helium Gas He, neongas NE, Ethane C2H6, heptane ( hexan, petrol), CNG - Compressed Natural Gas, Isobutane C4H10, Acetone CH3COCH3, Isopropanol CH3 CH(OH)CH3, CO carbon monoxide, Acetylene C2H2
