Series B90-1304-Cryo

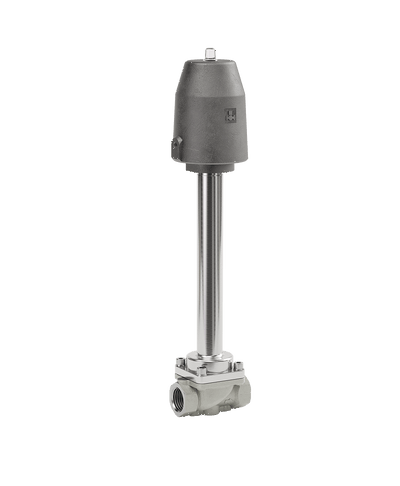

2/2-way valve, externally pressure controlled in long shaft design for liquefied gases (LN2 nitrogen, LCO2 carbon dioxide) down to -196°C. The spindle extension allows the valve body to be very well insulated. The spring-loaded single-acting control actuator is sufficiently distanced from the cold source. The valve is controlled by a 3/2-way pilot valve.
In addition, a pneumatic positioner for stroke control (input 4...20mA, 0...10V)) can be set up.
Technical informations
Connections
G1/2, G3/4, G1
Pressure
0 bar up to 40 bar
Temperature
-196 °C up to 80 °C
Type of Control
pneum. direct
Housing materials
AISI 316L - 1.4404
Sealing
PCTFE
Media
Liqud Nitrogen -196°C LN2, LNG liquified natural gas -162°C, Argon, liquified cryogenic -186°C
All Products
B9023/1315/7008-A9
G1/2
AISI 316L - 1.4404
PCTFE
0 - 40 bar
NC — closed by spring power with the flow direction
Welded ends ISO 4200 (G-thread not applicable)
B9023/1315/7008-AS
G1/2
AISI 316L - 1.4404
PCTFE
0 - 40 bar
NC — closed by spring power with the flow direction
Welding end DIN 3239 (G-thread not applicable)
B9023/1315/7008-XX
G1/2
AISI 316L - 1.4404
PCTFE
0 - 40 bar
NC — closed by spring power with the flow direction
No extra options
B9023/1315/7058-4R
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power against the media (soft closing)
Electro-pneumatic Positioner
B9023/1315/7058-A9
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power against the media (soft closing)
Welded ends ISO 4200 (G-thread not applicable)
B9023/1315/7058-AS
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power against the media (soft closing)
Welding end DIN 3239 (G-thread not applicable)
B9023/1315/7058-XX
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power against the media (soft closing)
No extra options
B9023/1315/7505-A9
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
Welded ends ISO 4200 (G-thread not applicable)
B9023/1315/7505-AS
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
Welding end DIN 3239 (G-thread not applicable)
B9023/1315/7505-XX
G1/2
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
No extra options
B9024/1315/7008-A9
G3/4
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
Welded ends ISO 4200 (G-thread not applicable)
B9024/1315/7008-AS
G3/4
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
Welding end DIN 3239 (G-thread not applicable)
B9024/1315/7008-XX
G3/4
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
No extra options
B9025/1315/7008-A9
G1
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
Welded ends ISO 4200 (G-thread not applicable)
B9025/1315/7008-AS
G1
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
Welding end DIN 3239 (G-thread not applicable)
B9025/1315/7008-XX
G1
AISI 316L - 1.4404
PCTFE
0 - 25 bar
NC — closed by spring power with the flow direction
No extra options
